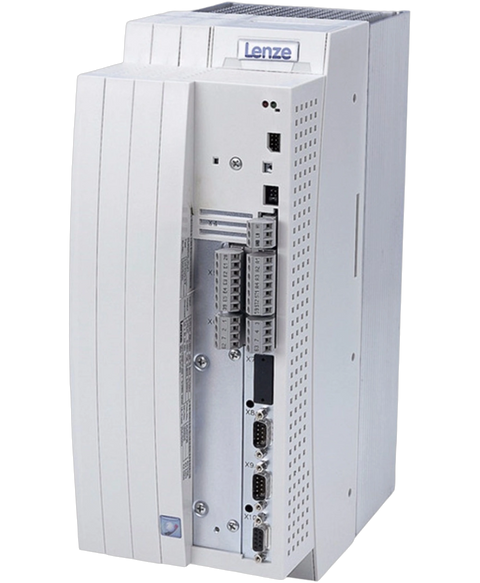

Lenze EVS9328-ES
The Lenze EVS9328-ES is engineered as a servo inverter, providing essential motor control functionality. It supports mains voltage ranging from 320 to 528 VAC and offers maximum output handling of 70.5 A at 8 kHz for 480V systems.
This Lenze EVS9328-ES is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives range and is referenced internally as PartLogic SKU PL26801438807.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Lenze |
| Product Line | Series 9300 |
| Part Number | EVS9328-ES |
| Weight | 30.00 lbs (13.61 kg) |
| Description | Servo Inverter |
| Max. Output Current (8 kHz) | 70.5 A for 480V |
| Max. Output Current (16 kHz) | 45.9 A for 480V |
| Mass | 12.5 kg |
| Mains Voltage | 320 to 528 VAC |
| Mains Rated Voltage | 400V and 480V |
| Mains Voltage Phase | 3 phases |
| Mains Input Frequency | 45 to 65 Hz |
| Alternative DC Supply | 460 to 740 VDC |
| Motor Power (4-pole ASM) | 22 kW for 400V and 30.0 kW for 480V |
| Output Current (8 kHz) | 47 A for 400V and 44.7 A for 480V |
| Output Current (16 kHz) | 30.6 A for 400V and 28.2 A for 480V |
| Output Power | 32.6 kVA for 400V and 37 kVA for 480V |
| Brand | Lenze |
