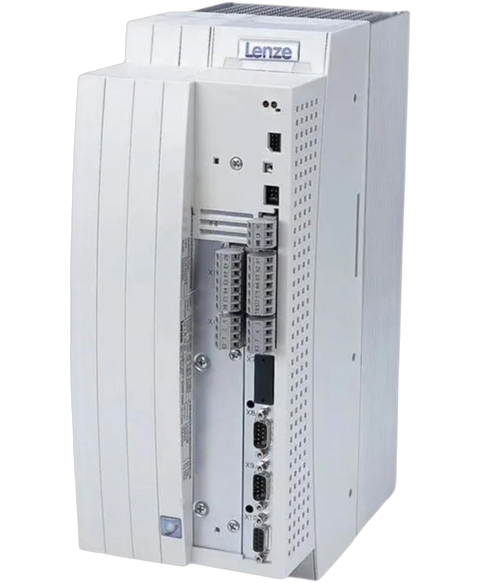

Lenze EVS9325-EP
The EVS9325-EP axis module from Lenze delivers precise control capabilities for various applications. It is designed for use with a 4-pole asynchronous motor, providing a motor capacity of up to 11 kW.
This Lenze EVS9325-EP is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives range and is referenced internally as PartLogic SKU PL26801461659.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Lenze |
| Product Line | Series 9300 |
| Part Number | EVS9325-EP |
| Weight | 15.31 lbs (6.95 kg) |
| Product Classification | Axis module |
| Mass | 7.5 kg |
| Physical Dimensions (H x W x D) | 350 mm x 135 mm x 250 mm |
| Heat Dissipation | 360 W |
| Motor Capacity (4-pole asynchronous motor) | 11 kW |
| Input Voltage Range | 3/PE AC 320 V to 528 V, 45-65 Hz |
| Input Current Rating (with mains choke) | 20.5 A |
| Input Current Rating (without mains choke) | 16.8 A |
| Output Current Rating at 8 kHz | 23.5 A |
| Output Current Rating at 16 kHz | 15.3 A |
| Maximum Output Current at 8 kHz | 35.3 A |
| Maximum Output Current at 16 kHz | 23 A |
| Continuous Power for Brake Chopper | 11 kW |
| Peak Power for Braking | 25 kW |
| Minimum Resistance for Braking | 27 ± 10% Ohms |
| Brand | Lenze |
