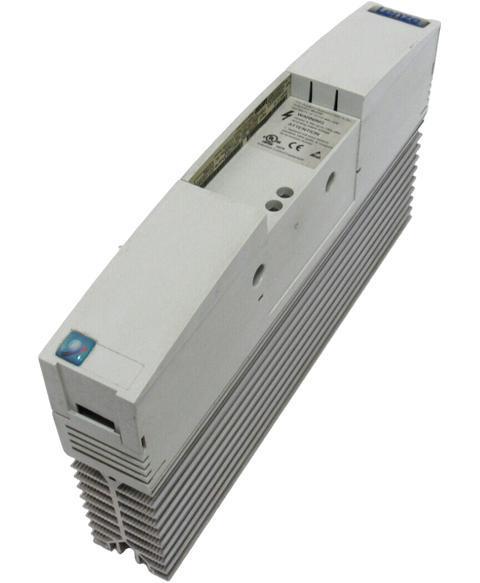

Lenze EMB9351-E
The EMB9351-E from Lenze is an inverter braking module characterized by its robust operational capabilities. It operates from a nominal supply voltage range of 270 to 775 volts DC and provides peak current handling up to 16 amperes for a duration of one minute.
This Lenze EMB9351-E is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Accessories range and is referenced internally as PartLogic SKU PL26805426040.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Lenze |
| Product Type | Inverter Braking Module |
| Product Line | Series 9300 |
| Part Number | EMB9351-E |
| Weight | 6.00 lbs (2.72 kg) |
| Nominal Supply Voltage | 270 to 775 Volts DC |
| Peak Current | 16 Amperes for 1 minute |
| Switching Threshold | 375 Volts DC, 725 Volts DC, and 765 Volts DC |
| Ambient Operating Temperature | 0 to 40°C with no power reduction; -40 to 55°C with power reduction |
| Peak Braking Power | 3 kilowatt at 375 Volts DC, 11 kilowatt at 725 Volts DC, and 12 kilowatt at 765 Volts DC |
| Braking Resistance | 47 ohms (minimum) at 375, 725, and 765 Volts DC |
| Storage Temperature | -25 to 70°C |
| Continuous Braking Power | 100 Watts at 375, 725, and 765 Volts DC |
| Protection Class | IP10 |
| Humidity Tolerance | Approximately 85% relative humidity, non-condensing environment |
| Mounting Method | DIN rail mount |
| Compliance Standard | UL508, UL508C, and CE-certified |
| Brand | Lenze |
