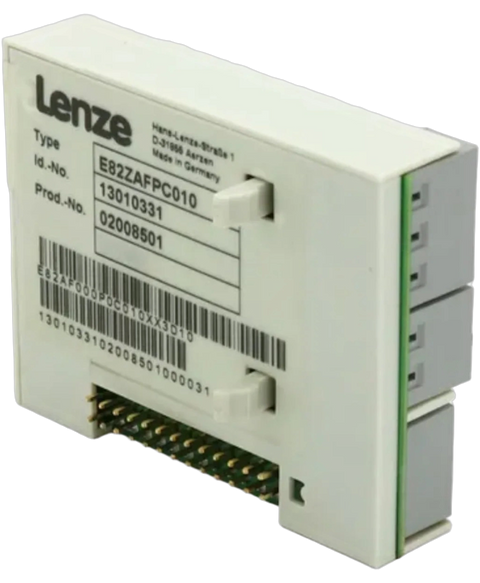

Lenze E82ZAFPC010
The E82ZAFPC010 from Lenze is a PROFIBUS communication module designed for versatile industrial connectivity. Operating under the Series 8200, this module complies with an IP20 protection rating, indicating suitability for typical indoor environments without significant dust or moisture exposure.
This Lenze E82ZAFPC010 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Accessories range and is referenced internally as PartLogic SKU PL26805620898.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Lenze |
| Product Type | PROFIBUS Communication Module |
| Product Line | Series 8200 |
| Part Number | E82ZAFPC010 |
| Weight | 3.00 lbs (1.36 kg) |
| Protection Class | IP20 |
| Communication Medium | RS485 |
| Variant | Plug terminal (PT) with spring connection |
| Ambient Operating Temperature | -20 to 60°C |
| PROFIBUS Stations Type | Slave |
| Communication Profile | PROFIBUS-DP-V0 |
| Baud Rate | 9.6 to 12 kilobit per second |
| Number of Process Data Words (PCD) | 1 to 10 words (16-bit per word) |
| Cable Length Per Bus Segment | Up to 1,200 meters (3,397 feet) depending on the cable type and baud rate |
| Network Topology | Line (without repeater) or line and tree (with repeaters) |
| Storage Temperature | -25 to 60°C |
| Rated Supply Voltage | 24 Volts DC |
| Maximum Number of Devices | 32 including the host system and 125 slaves with repeaters |
| Brand | Lenze |
