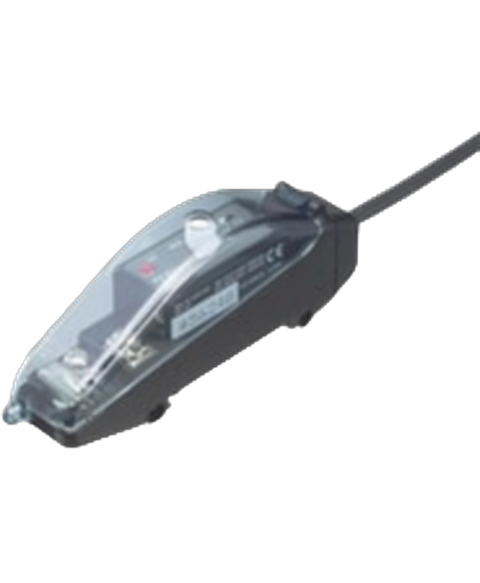

Keyence ES-X38
Discontinued by manufacturer, proximity switch amplifier, 12-24VDC supply, npn output, normally closed,normally open mode selectable, with dust cover, 2m
This Keyence ES-X38 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Displacement sensors > Eddy current displacement sensors range and is referenced internally as PartLogic SKU PL27190931735.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Collector Emitter Voltage (VCEO) | 28 V |
| Fall Time | 20 µs |
| Forward Current | 20 mA |
| Forward Voltage | 1.2 V |
| Height | 8 mm |
| Lead Free | Lead Free |
| Length | 12.5 mm |
| Low Level Output Current | 16 mA |
| Max Collector Current | 16 mA |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 5 |
| Operating Supply Current | 3.2 mA |
| Output Configuration | NPN - Open Collector |
| Power Dissipation | 250 mW |
| REACH SVHC | Unknown |
| Reverse Breakdown Voltage | 4 V |
| Reverse Voltage | 4 V |
| Reverse Voltage (DC) | 4 V |
| Rise Time | 3 µs |
| RoHS | Compliant |
| Sensing Distance | 3.5052 mm |
| Width | 5 mm |
