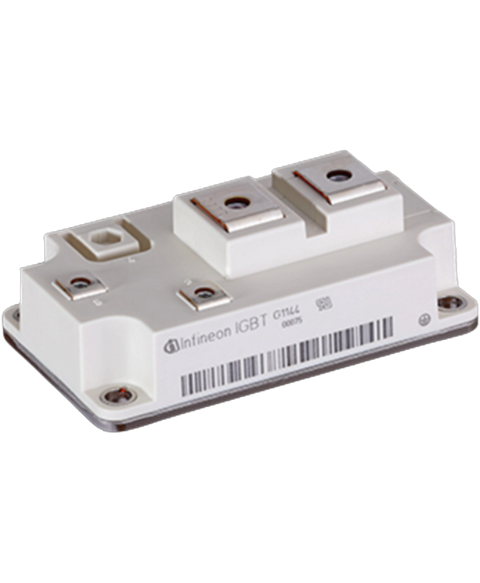

Infineon FZ600R12KE3
IGBT Module, 1200V 600A Single Switch with TRENCHSTOP IGBT3 and Emitter Controlled 3 Diode
This Infineon FZ600R12KE3 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power semiconductors > Igbt modules range and is referenced internally as PartLogic SKU PL27200871769.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Collector Emitter Breakdown Voltage | 1.2 kV |
| Collector Emitter Saturation Voltage | 1.7 V |
| Collector Emitter Voltage (VCEO) | 1.2 kV |
| Element Configuration | Single |
| Height | 36.5 mm |
| Length | 106.4 mm |
| Lifecycle Status | Unauthorized. Please upgrade your Nexar subscription to include 'LIFECYCLE'. |
| Max Collector Current | 900 A |
| Max Operating Temperature | 125 °C |
| Max Power Dissipation | 2.8 kW |
| Min Operating Temperature | -40 °C |
| Mount | Screw |
| Package Quantity | 10 |
| Power Dissipation | 2.8 kW |
| REACH SVHC | No |
| Rise Time | 90 ns |
| RoHS | Compliant |
| Width | 61.4 mm |
