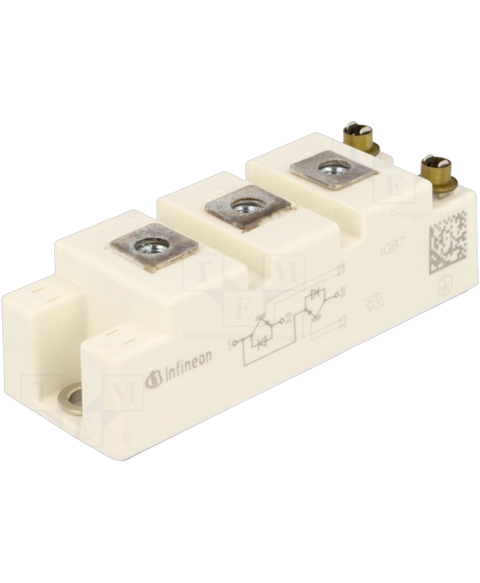

Infineon BSM75GB60DLC
IGBT module, 600V, 100A, chassis mount.
This Infineon BSM75GB60DLC is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power semiconductors > Igbt modules range and is referenced internally as PartLogic SKU PL27190828145.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Collector Emitter Breakdown Voltage | 600 V |
| Collector Emitter Saturation Voltage | 1.95 V |
| Collector Emitter Voltage (VCEO) | 600 V |
| Continuous Collector Current | 100 A |
| Element Configuration | Dual |
| Halogen Free | Not Halogen Free |
| Height | 30.5 mm |
| Lead Free | Lead Free |
| Length | 94 mm |
| Lifecycle Status | Unauthorized. Please upgrade your Nexar subscription to include 'LIFECYCLE'. |
| Max Collector Current | 100 A |
| Max Junction Temperature (Tj) | 150 °C |
| Max Operating Temperature | 125 °C |
| Max Power Dissipation | 355 W |
| Min Operating Temperature | -40 °C |
| Mount | Screw |
| Number of Pins | 34 |
| Package Quantity | 10 |
| Power Dissipation | 355 W |
| Radiation Hardening | No |
| RoHS | Compliant |
| Turn-Off Delay Time | 155 ns |
| Turn-On Delay Time | 63 ns |
| Width | 34 mm |
