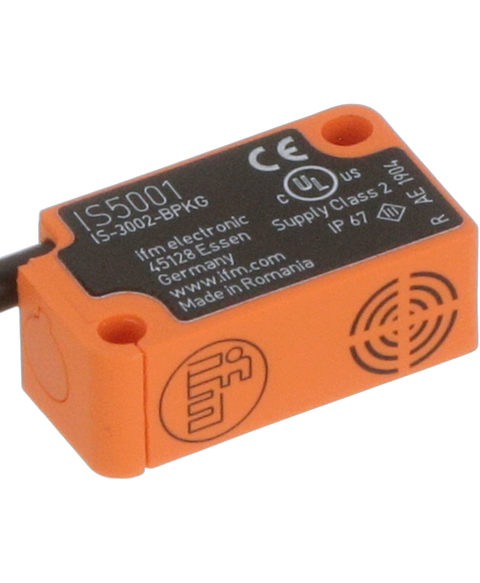

IFM IS5001
Ifm electronic parallelepiped proximity sensor, PNP, detection 2 mm, 10 36 VDC.
This IFM IS5001 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity > Inductive range and is referenced internally as PartLogic SKU PL26805424120.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Depth | 10.2 mm |
| Housing Material | PBT |
| Length | 27.8 mm |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -25 °C |
| Mount | Flush |
| Operating Supply Voltage | 36 V |
| Ratings | IP67 |
| RoHS | Compliant |
| Switching Current | 200 mA |
| Switching Frequency | 800 Hz |
| Termination | Wire |
| Width | 16 mm |
