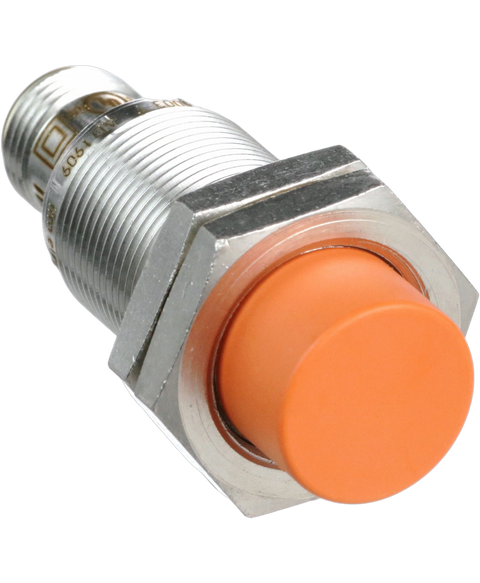

IFM IGS207
Inductive sensor, pnp, normally closed output function, 0.0393 sensin range, threaded type housing, 10-30VDC, <10 am, reverse polarity protection, 2.5VDC voltage drop switching output
This IFM IGS207 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity > Inductive range and is referenced internally as PartLogic SKU PL26801449041.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing Material | Bronze |
| Length | 51 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Mount | Flush |
| Number of Pins | 3 |
| Operating Supply Voltage | 36 V |
| Ratings | IP67 |
| RoHS | Compliant |
| Switching Current | 100 mA |
| Switching Frequency | 300 Hz |
| Termination | Connector |
