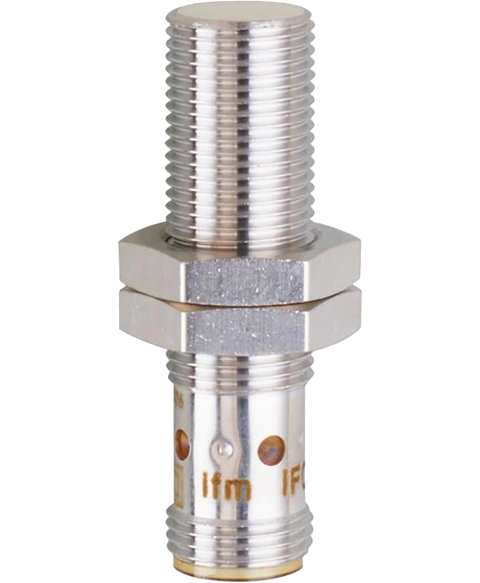

IFM IFC204
Inductive sensor, 4mm sensing range, 10-30VDC, 700mA, pnp, N,O, m12 connector, a coded, w, overload protection, -25 to +70 degrees c, IP68, (ifc204)
This IFM IFC204 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity > Inductive range and is referenced internally as PartLogic SKU PL26805522915.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing Material | Bronze |
| Length | 45 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Mount | Flush |
| Operating Supply Voltage | 36 V |
| Ratings | IP68 |
| RoHS | Compliant |
| Switching Current | 100 mA |
| Switching Frequency | 700 Hz |
| Termination | Connector |
