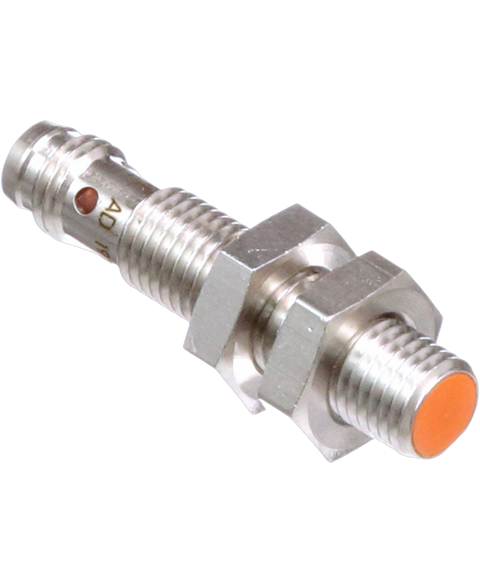

IFM IE5338
Inductive sensor, 3mm sensing range, flush mountable, normally open, dc pnp,npn, m8 connector, (with ifm socket duly screwed on), 2-wire , 3-wire, 800Hz switching frequency, IP65,67
This IFM IE5338 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity > Inductive range and is referenced internally as PartLogic SKU PL27068150508.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing Material | Brass |
| Length | 40 mm |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Mount | Flush |
| Operating Supply Voltage | 30 V |
| Ratings | IP65 |
| RoHS | Non-Compliant |
| Switching Current | 100 mA |
| Switching Frequency | 800 Hz |
| Termination | Connector |
