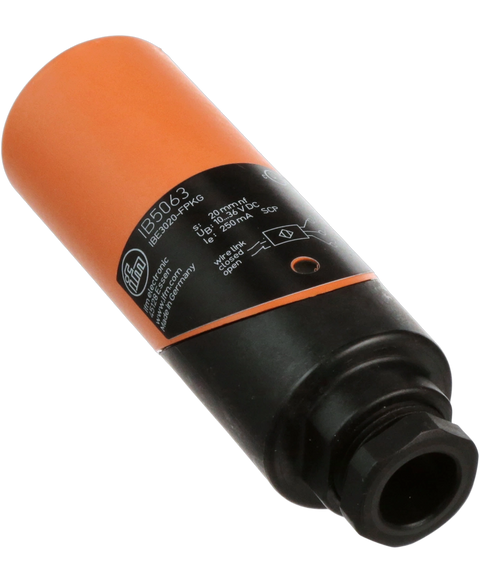

IFM IB5063
Inductive sensor, 20mm sensing range, 10-36VDC, 15mA, pnp, NO,NC selectable, pulsed, non-flush mount, -25 to +80 degrees c, IP65, (ib5063)
This IFM IB5063 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity > Inductive range and is referenced internally as PartLogic SKU PL26801432824.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing Material | PBT |
| Length | 98 mm |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -25 °C |
| Mount | Flush |
| Operating Supply Voltage | 36 V |
| Ratings | IP65 |
| RoHS | Compliant |
| Switching Current | 250 mA |
| Switching Frequency | 350 Hz |
| Termination | Wire |
