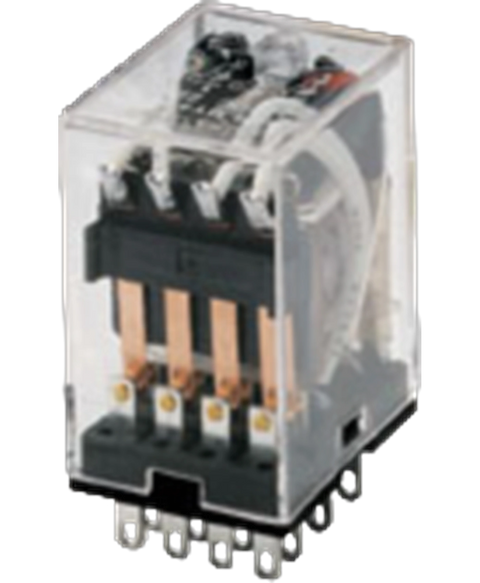

Honeywell SZR-MY4-N1
Electromechanical Relay 220VAC 12.95KOhm 3A 4PDT (21.5x28x36)mm Socket Power Relay
This Honeywell SZR-MY4-N1 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Electrical components > Relays range and is referenced internally as PartLogic SKU PL26805310104.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Current | 5.8 mA |
| Coil Power | 1.1 W |
| Coil Resistance | 12.95 kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 220 V |
| Contact Current Rating | 3 A |
| Contact Material | Gold, Silver |
| Contact Resistance | 50 mΩ |
| Current Rating | 3 A |
| Depth | 28 mm |
| Height | 28 mm |
| Length | 21.5 mm |
| Max Current Rating | 3 A |
| Max Operating Temperature | 75 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 125 V |
| Min Operating Temperature | -25 °C |
| Mount | Plug-In, Socket, Socketable |
| Number of Pins | 14 |
| Operate Time | 20 ms |
| Power Consumption | 1.1 W |
| REACH SVHC | Unknown |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| RoHS | Compliant |
| Switching Capacity | 660 W |
| Switching Current | 3 A |
| Termination | Plug |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 250 V |
| Weight | 35 g |
