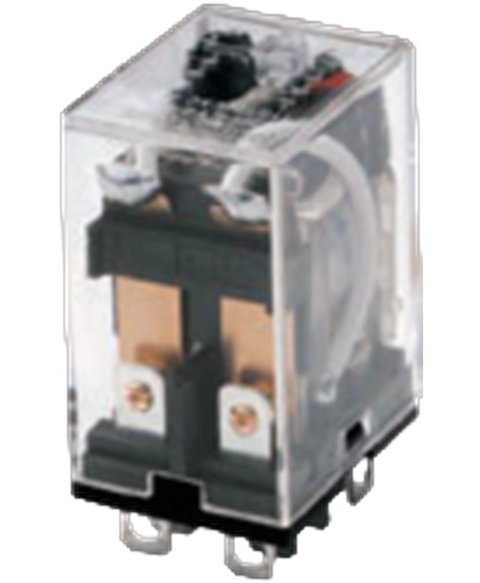

Honeywell SZR-LY2-N1
Electromechanical Relay 24VDC 650Ohm 10A DPDT (21.5x28x42.4)mm Socket Power Relay
This Honeywell SZR-LY2-N1 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Electrical components > Relays range and is referenced internally as PartLogic SKU PL26805567215.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Current | 36.9 mA |
| Coil Power | 900 mW |
| Coil Resistance | 650 Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 10 A |
| Contact Material | Silver |
| Contact Resistance | 50 mΩ |
| Current Rating | 10 A |
| Depth | 36 mm |
| Height | 28 mm |
| Length | 21.5 mm |
| Max Current Rating | 10 A |
| Max Operating Temperature | 70 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 125 V |
| Min Operating Temperature | -25 °C |
| Mount | Plug-In, Socket, Socketable |
| Number of Pins | 8 |
| Operate Time | 25 ms |
| Power Consumption | 900 mW |
| REACH SVHC | Unknown |
| Relay Type | General Purpose |
| Release Time | 25 ms |
| RoHS | Compliant |
| Termination | Plug |
| Throw Configuration | DPDT |
| Weight | 35 g |
