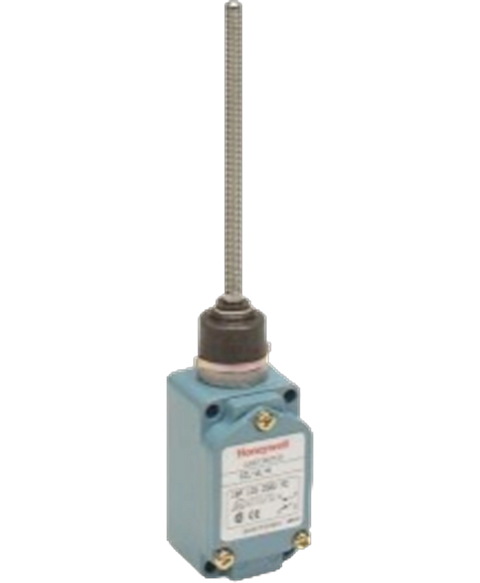

Honeywell SZL-WL-K
Discontinued by manufacturer, limit switch, spring, total length 100mm, NO + NC, 10-amp
This Honeywell SZL-WL-K is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Limit switches range and is referenced internally as PartLogic SKU PL26805567470.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Current Rating | 10 A |
| Housing Material | Aluminium |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -10 °C |
| Operating Force | 147 N |
| Pretravel | 29.9974 mm |
| Ratings | IP67 |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 480 V |
| Voltage Rating (DC) | 250 V |
