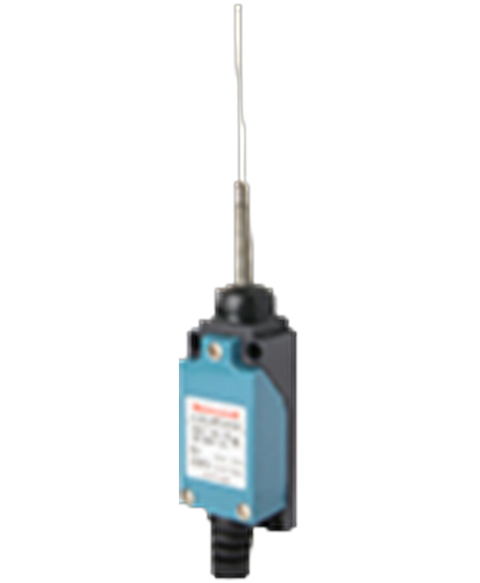

Honeywell SZL-VL-G
Discontinued by manufacturer, limit switch, wobble - coil spring, 0.88 n operating force, 30mm max pretravel, 20mm overtravel
This Honeywell SZL-VL-G is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Limit switches range and is referenced internally as PartLogic SKU PL26801443973.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, UL |
| Case/Package | 125 |
| Current Rating | 5 A |
| Depth | 25 mm |
| Height | 174 mm |
| Housing Material | Zinc |
| Lead Free | Lead Free |
| Length | 28 mm |
| Max Current Rating | 5 A |
| Max Operating Temperature | 60 °C |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -20 °C |
| Mount | Chassis Mount, Panel, Screw, Surface Mount |
| Nominal Supply Current | 5 A |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Orientation | Straight |
| Overtravel | 20 mm |
| Pretravel | 30 mm |
| Ratings | Dust Tight, IP64, Water Resistant |
| REACH SVHC | No |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Termination | Cable |
| Throw Configuration | SPDT |
| Type | General Purpose |
| Voltage Rating (AC) | 250 V |
| Voltage Rating (DC) | 125 V |
| Width | 28 mm |
