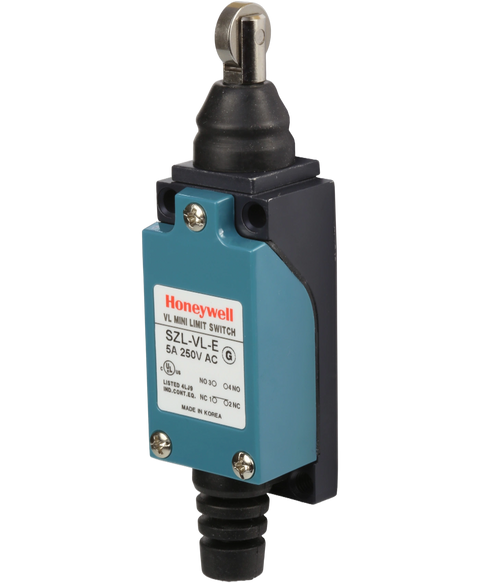

Honeywell SZL-VL-E
Discontinued by manufacturer, limit switch, cross roller plunger, 8.83 n operating force, 1.47 n release force, 1.5mm pretravel, 4mm max overtravel, 0.7mm differential travel, replaced by szl-vl-s-e-n-m
This Honeywell SZL-VL-E is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Limit switches range and is referenced internally as PartLogic SKU PL26805567025.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, UL |
| Current Rating | 5 A |
| Depth | 25 mm |
| Differential Travel | 7 mm |
| Height | 112 mm |
| Housing Material | Zinc |
| Length | 28 mm |
| Max Current Rating | 5 A |
| Max Operating Temperature | 60 °C |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -20 °C |
| Mount | Chassis Mount, Panel, Screw, Surface Mount |
| Nominal Supply Current | 5 A |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 883 N |
| Orientation | Straight |
| Overtravel | 40 mm |
| Pretravel | 15 mm |
| Ratings | Dust Tight, IP64, Water Resistant |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Termination | Cable |
| Throw Configuration | SPDT |
| Type | General Purpose |
| Voltage Rating (AC) | 250 V |
| Voltage Rating (DC) | 125 V |
| Width | 25 mm |
