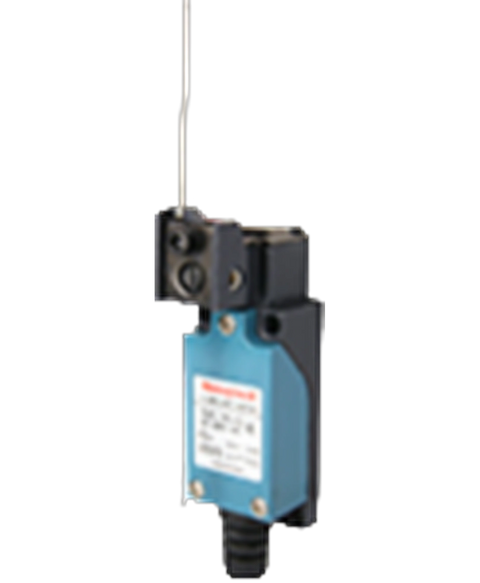

Honeywell SZL-VL-C
Discontinued by manufacturer, limit switch, side rotary, rod adjustable, 2.0 to 7.84 n operating force, 0.12 to 0.49 n release force, 20 degrees pretravel, 75 degrees max overtravel, 10 degrees differential travel, replaced by szl-vl-s-c-n-m
This Honeywell SZL-VL-C is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Limit switches range and is referenced internally as PartLogic SKU PL26805568075.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, UL |
| Current Rating | 5 A |
| Depth | 44.9 mm |
| Height | 204.5 mm |
| Housing Material | Zinc |
| Length | 28 mm |
| Max Current Rating | 5 A |
| Max Operating Temperature | 60 °C |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -20 °C |
| Mount | Chassis Mount, Panel, Screw, Surface Mount |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Orientation | Right Angle |
| Ratings | Dust Tight, IP64, Water Resistant |
| REACH SVHC | No |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Termination | Cable |
| Throw Configuration | SPDT |
| Type | General Purpose |
| Voltage Rating (AC) | 250 V |
| Voltage Rating (DC) | 125 V |
| Width | 28 mm |
