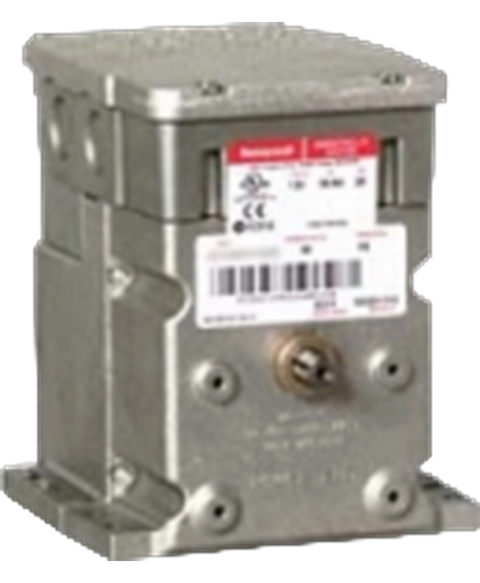

Honeywell M7284A1004
Actuator, modutrol iv motor, non-spring return, foot mounted, 4-20mA modulating control signal, 90 degree stroke, 30-60 seconds timing, 17 nm , 150 lb-in torque rating, 15 va, 120VAC, 50,60Hz, replaces m7284a1046
This Honeywell M7284A1004 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Actuators > Damper actuators range and is referenced internally as PartLogic SKU PL26805289889.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Part # | M7284A1004 |
| Category | HVAC |
| Subcategory | HVAC Actuator |
| Weight | 8.00 lbs |
| Supply Voltage | 120 VAC |
| Power Rating | 13 W |
| Power Consumption | 15 VA |
| Torque Rating | 17 NM / 150 LB-IN |
| Timing Range | 30-60 SECONDS |
| Control Signal | 4-20 MA, Modulating |
| Frequency | 50/60 HZ |
| Stroke Setting | 90 DEGREE |
| Product Type | ACTUATOR |
| Mounting Style | FOOT MOUNTED |
| Motor Type | MODUTROL |
| Spring Return | No |
| Terminal Style | Screw Terminals |
