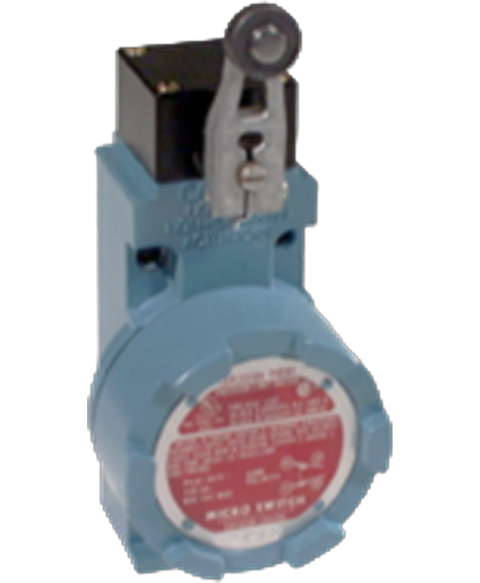

Honeywell LSXA3K-1A
Limit switch, side rotary, spdt-1no,1nc, limit switch actuator:side rotary, contact configuration:spdt-1no, spdt-NC, contact current ac max:10A, contact voltage ac max:600v, operating force max:0.45n, product range:- rohs compliant: yes
This Honeywell LSXA3K-1A is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Limit switches range and is referenced internally as PartLogic SKU PL26801350707.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CSA, UL |
| Case/Package | 600 |
| Current Rating | 10 A |
| Depth | 74.4 mm |
| Housing Material | Aluminium |
| Length | 50.8 mm |
| Max Operating Temperature | 121 °C |
| Min Operating Temperature | -12 °C |
| Mount | Chassis Mount, Screw |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 450 mN |
| Orientation | Right Angle |
| Packaging | Bulk |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 600 V |
| Voltage Rating (DC) | 115 V |
| Width | 146.3 mm |
