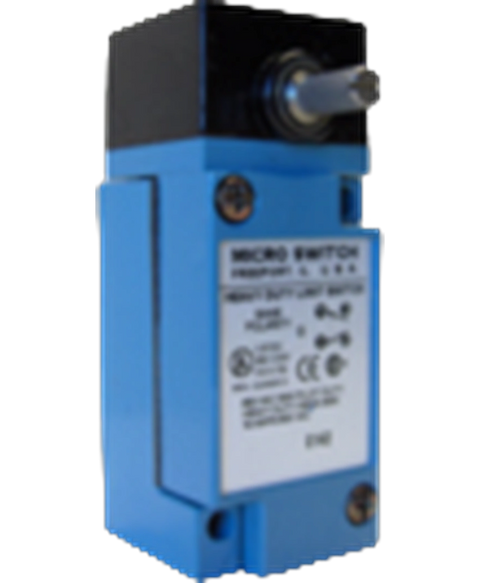

Honeywell LSM2D
Limit switch, microswitch, dpdt, 2 NO , 2 NC, side rotary, 10A, 600VAC, 0.45 n
This Honeywell LSM2D is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Limit switches range and is referenced internally as PartLogic SKU PL26805289318.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, EN, UL |
| Contact Current Rating | 10 A |
| Current Rating | 10 A |
| Depth | 119 mm |
| Housing Material | Zinc |
| Length | 47.8 mm |
| Max Operating Temperature | 121 °C |
| Min Operating Temperature | -1 °C |
| Mount | Chassis Mount, Front, Screw |
| Operating Force | 45 N |
| Orientation | Right Angle |
| Ratings | IP65 |
| REACH SVHC | No |
| RoHS | Compliant |
| Switch Function | Mom-Off-Mom |
| Termination | Conduit |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 600 V |
| Voltage Rating (DC) | 115 V |
| Width | 45.3 mm |
