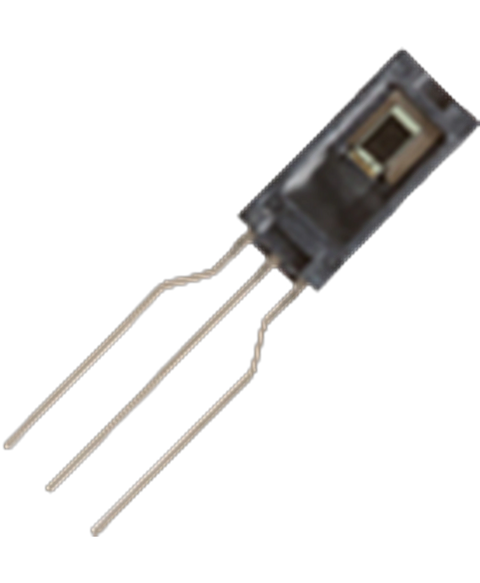

Honeywell HIH-4000-003
Microswitch, humidity sensor, 3.5 %, 5.8 v, 0% to 100% relative humidity, sip, 3, 5 ms rohs compliant: yes
This Honeywell HIH-4000-003 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Humidity range and is referenced internally as PartLogic SKU PL26801466944.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Accuracy | 3.5 % |
| Case/Package | SIP |
| Height | 2.03 mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.54 mm |
| Length | 4.17 mm |
| Max Operating Temperature | 85 °C |
| Max Supply Voltage | 5.8 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 4 V |
| Mount | Through Hole |
| Nominal Supply Current | 500 µA |
| Number of Pins | 3 |
| Operating Supply Voltage | 5 V |
| Output Type | ANALOG, Analog Voltage |
| Radiation Hardening | No |
| REACH SVHC | No |
| Response Time | 15 s |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Width | 2.03 mm |
