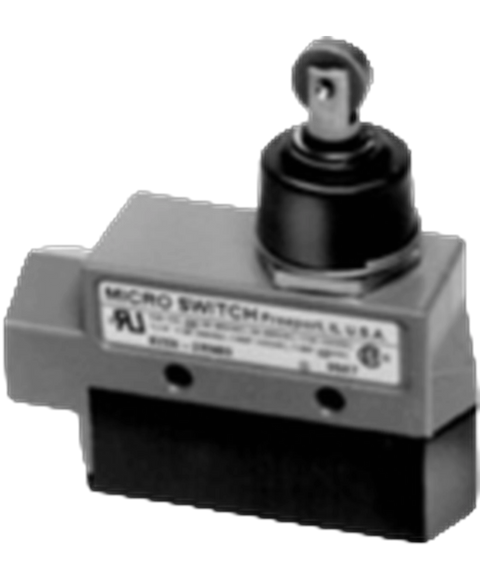

Honeywell BZE6-2RQ8
Microswitch, limit switch, spdt, top roller plunger, 15A, 600VAC, operating force max 3.7 n, screw terminals
This Honeywell BZE6-2RQ8 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Limit switches range and is referenced internally as PartLogic SKU PL27198737863.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CSA, UL |
| Contact Current Rating | 15 A |
| Current Rating | 15 A |
| Depth | 77.2 mm |
| Differential Travel | 5 mm |
| Height | 98 mm |
| Housing Material | Zinc |
| Length | 77.2 mm |
| Max Current Rating | 15 A |
| Max Operating Temperature | 71 °C |
| Max Voltage Rating (AC) | 600 V |
| Max Voltage Rating (DC) | 250 V |
| Min Operating Temperature | -32 °C |
| Mount | Chassis Mount, Screw |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Position | 49.6062 mm |
| Orientation | Straight |
| Overtravel | 355 mm |
| Pretravel | 38 mm |
| Ratings | IP40 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125 V |
| Voltage Rating (DC) | 125 V |
| Width | 44.4 mm |
