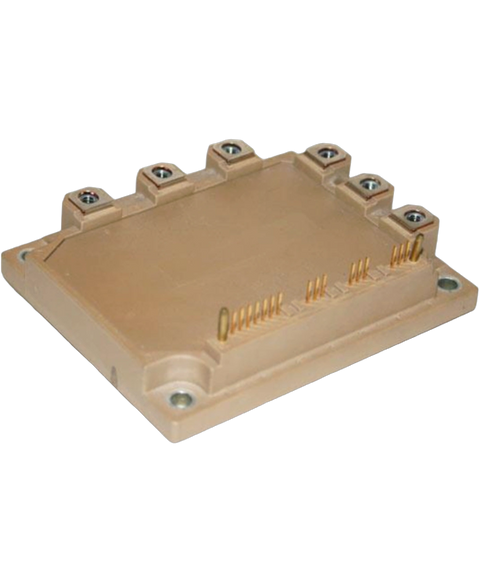

Fuji 6MBP50RA120-55
Fuji IGBT module, 6-pack IPM, 1200V, 50A, NPT, screw terminals, P611 case.
This Fuji 6MBP50RA120-55 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power semiconductors > Ipm modules range and is referenced internally as PartLogic SKU PL26805602616.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Collector Emitter Breakdown Voltage | 1.2 kV |
| Collector Emitter Voltage (VCEO) | 1.2 kV |
| Height | 22 mm |
| Isolation Voltage | 2.5 kV |
| Length | 109 mm |
| Max Collector Current | 50 A |
| Max Operating Temperature | 100 °C |
| Max Power Dissipation | 357 W |
| Min Operating Temperature | -20 °C |
| Mount | PCB |
| Power Dissipation | 400 W |
| Rise Time | 300 ns |
| RoHS | Compliant |
| Width | 88 mm |
