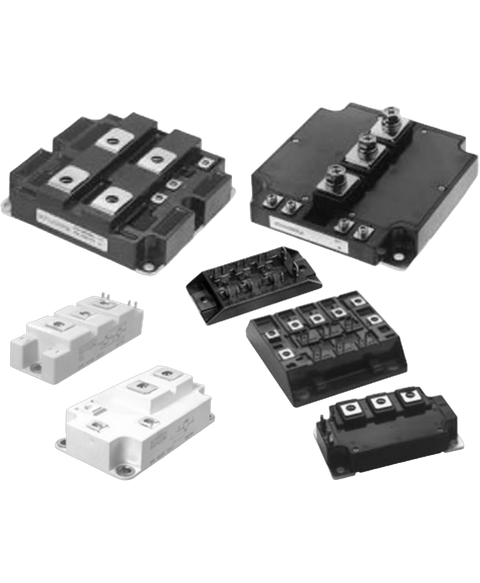

Fuji 2MBI200S-120-50
Discontinued by manufacturer, igbt, dual module, 200A, 1200v, npt, neutral, collector emitter voltage 2.6v, power dissipation
This Fuji 2MBI200S-120-50 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power semiconductors > Igbt modules range and is referenced internally as PartLogic SKU PL26805606945.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Collector Emitter Breakdown Voltage | 1.2 kV |
| Collector Emitter Saturation Voltage | 2.6 V |
| Collector Emitter Voltage (VCEO) | 1.2 kV |
| Height | 30 mm |
| Isolation Voltage | 2.5 kV |
| Length | 108 mm |
| Max Collector Current | 200 A |
| Max Operating Temperature | 150 °C |
| Max Power Dissipation | 1.5 kW |
| Mount | Screw |
| Number of Pins | 7 |
| Power Dissipation | 1.5 kW |
| REACH SVHC | Unknown |
| Rise Time | 350 ns |
| RoHS | Compliant |
