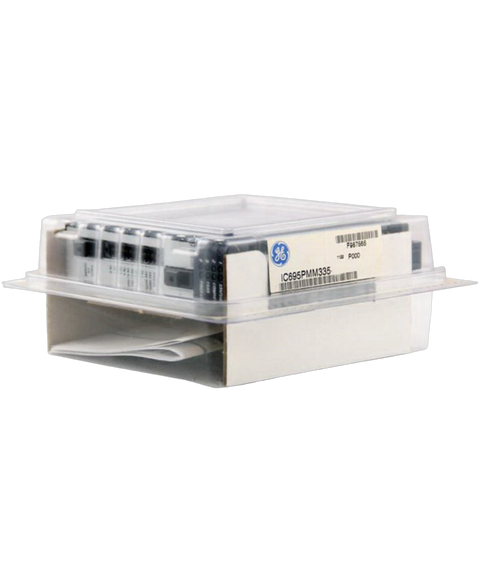

FANUC IC695PMM335
The IC695PMM335 is a multi-axis motion controller from the PACSysystem RX3i by Emerson Automation, formerly by GE Intelligent Platforms (GE IP). This module mounts to an RX3i rack which enables control of up to Four (4) servo axes and additional virtual or time based axes. This motion controller supports Position, Velocity and Torque loop with built-in I,O including Four (4) 24VDC, Optically isolated, General Purpose Inputs configurable for source,sink wiring; Two (2) 24VDC, High-speed Inputs configurable for source,sink wiring and Two (2) 24VDC, Optically isolated, General Purpose Inputs , Outputs configurable for source,sink wiring.
This FANUC IC695PMM335 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu range and is referenced internally as PartLogic SKU PL26993007421.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | GE Fanuc Emerson |
| Product Type | Multi-Axis Motion Controller module |
| Product Line | RX3i PacSystem |
| Part Number | IC695PMM335 |
| Weight | 0.63 lbs (0.28 kg) |
| Series | PACSystem RX3i |
| Product Description | Motion Controller Module |
| Catalog | IC695 |
| No. of Axes | 4 |
| No of Master axes | 1 |
| Backplane Support | Universal Support |
| Motion Path Planning | 1ms |
| Number of Slots | 1 (single slot) |
| Position Loop Update Rate | 500μs |
| Controlled Axes/Module | 4 |
| FSSB Velocity Loop Update Rate | 125μs |
| FSSB Torque Loop Update Rate | 62.5μs |
| Power Consumption at 5 V | 0.45 A |
| Servo Command Interface | Fiber Optic |
| Power Consumption at 3.3 V | 1.1 A |
| Servo Command Interface speed | 50Mb/s via FANUC Serial Servo Bus (FSSB) |
| High Speed Position Capture | 2 Inputs/Axis |
| Maximum FSSB Cable Length | 100 meters between nodes; 400 meters per module |
| Floating Point | Yes |
| Compatible encoder type | Incremental/Absolute Serial Encoder |
| General purpose inputs | Four (4) 24VDC, Optically isolated, configurable for source/sink wiring |
| High-speed inputs | Two (2) 24VDC, High-speed Inputs configurable for source/sink wiring |
| General purpose I/O | Two (2) 24VDC, Optically isolated, General Purpose Inputs / Outputs configurable for source/sink wiring. |
| Brand | GE Fanuc Emerson |
