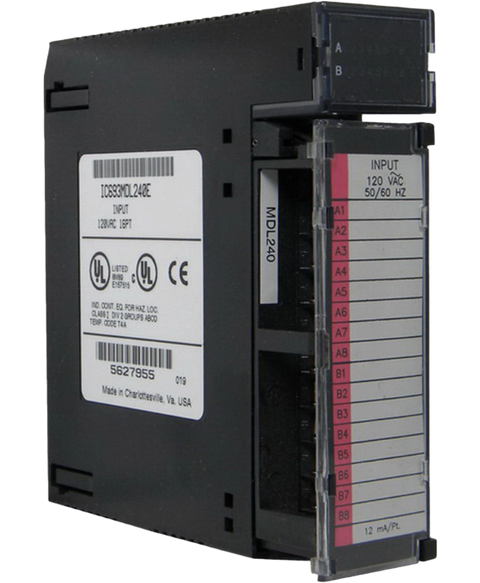

FANUC IC693MDL240
The IC693MDL240 is a Series 90-30 Discrete Input module formerly manufactured by GE Fanuc, now under Emerson Automation. This module features Sixteen (16) 120 VAC input channels within a single group. It accepts 0-132 VAC input voltage range and input current of 12 mA. This module has backplane current draw of 90 mA.
This FANUC IC693MDL240 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input range and is referenced internally as PartLogic SKU PL26805657869.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | GE Fanuc Emerson |
| Product Type | Input Module |
| Product Line | Series 90-30 |
| Part Number | IC693MDL240 |
| Weight | 1.00 lbs (0.45 kg) |
| Product Description | Discrete input module |
| No of Channels | Sixteen (16) |
| Input signal range | 0-132 VAC |
| Nominal Input voltage | 0-120 VAC |
| Volts | 120 V AC |
| Input Frequency | 47-63 Hz |
| Inputs | 16 |
| Input current | 12mA per channel |
| Frequency | 50/60 Hz |
| Current draw | 90 mA |
| Input Current at a Rated Speed | 12 mA |
| On State Voltage | 74 VAC to 132 VAC |
| Isolation between field side and logic side | 1500 Volts RMS |
| Off state voltage | 0 VAC - 20 VAC |
| AC Power | Yes |
| On state current | 6 mA |
| DC Power | No |
| Off state current | 2.2 mA |
| LED Indicators | 16 |
| On response time, typical | 30 ms |
| Logic Reading | %I |
| On response time, maximum | 45 ms |
| Product Lifecycle Status | Discontinued/Obsolete |
| Brand | GE Fanuc Emerson |
