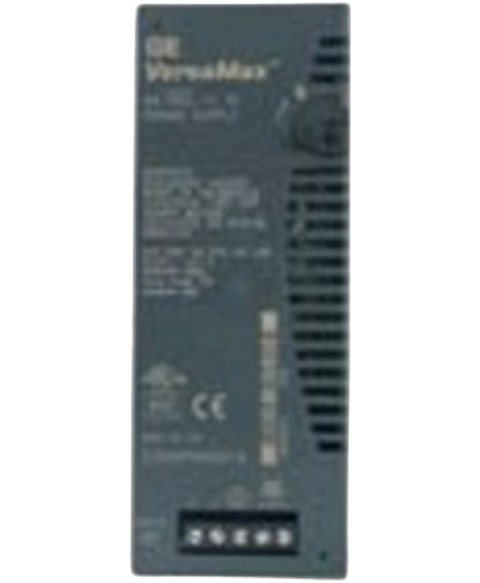

FANUC IC200PWR002
The IC200PWR002 is a Power supply module that is part of the VersaMax product family, currently under Emerson Automation, formerly produced by GE Intelligent Platforms. This power supply module is a 24 VDC expanded power supply with input supply voltage of 18-30 VDC. It has an output voltage of 5 VDC and 3.3 VDC and total output current of 1.5 A, maximum specifically, 1.0 A, maximum at 3.3 VDC and 1.5 A, maximum at 5 VDC output.
This FANUC IC200PWR002 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supply range and is referenced internally as PartLogic SKU PL26805461458.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | GE Fanuc Emerson |
| Product Line | Versamax |
| Part Number | IC200PWR002 |
| Weight | 0.31 lbs (0.14 kg) |
| Lifecycle Status | Active |
| Product Description | Supplemental Power supply operation |
| Input Voltage | 24 Volts DC |
| Supported when installed on a Booster carrier | Power Supply module |
| Output Voltage | 5 Volts DC and 3.3 Volts DC |
| Input Voltage, range | 18-30 VDC |
| Extended Power | Yes |
| Input voltage, nominal | 24 VDC |
| Input Power | 11 W |
| Isolated Power | No |
| Total output current | 1.5 Amperes |
| Holdup Time | 10 ms |
| Output current at 3.3 VDC | 1.0 A, maximum |
| Protection | Short circuit, overload, reverse polarity |
| Output current at 5VDC | 1.5 A, maximum |
| Inrush Current | 20 A at 24 VDC and 25 A at 30 VDC |
| Built-in module protection | Short circuit; Overload; Reverse polarity |
| Compatible module | VersaMax CPU, NIU, I/O modules |
| 3.3V Output Current | 0.25 A maximum |
| 5V Output Current | 1.5 A minus the 3.3 V current used, maximum |
| Brand | GE Fanuc Emerson |
