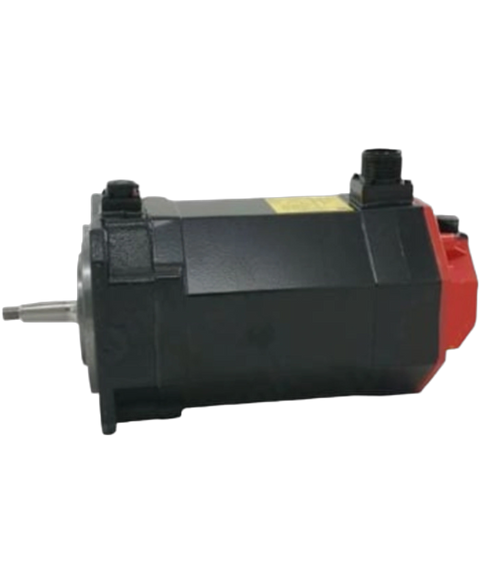

FANUC A06B-2238-B605
The FANUC A06B-2238-B605 is an AC servo motor designed for various industrial applications. It operates at a rated voltage of 90 volts DC and provides a power output of 12 kW, achieving a maximum speed of 4000 RPM with a rated torque of 27.7 Nm.
This FANUC A06B-2238-B605 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805418165.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | FANUC |
| Product Line | A06B |
| Part Number | A06B-2238-B605 |
| Weight | 33.00 lbs (14.97 kg) |
| Name | AC Servo Motor |
| Rated Voltage | 90V DC |
| Rated Power | 12 kW |
| Rated Speed | 4000 RPM |
| Rated Torque | 27.7 Nm |
| Peak Torque | 82.8 Nm |
| Rated Current | 17.3 A |
| Rotor Inertia | 0.016 kg·m² |
| Rated Efficiency | 90% |
| Back EMF Constant | 12.6 V/krpm |
| Motor Frame Size | TPR 90V |
| Feedback Type | Absolute Encoder |
| Mechanical Connection | Flange mount |
| Protection Class | IP65 |
| Insulation Class | Class F |
| Brand | FANUC |
