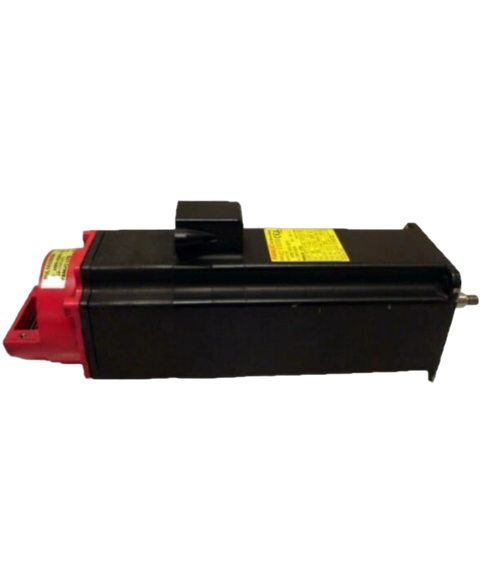

FANUC A06B-0374-B175
The FANUC A06B-0374-B175 is an AC servo motor specifically designed for CNC machines. With a rated output power of 0.5 kW, this motor operates at a voltage of 66 V and boasts a maximum frequency of 200 Hz, reaching speeds of 3000 rpm.
This FANUC A06B-0374-B175 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805758488.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | FANUC |
| Product Line | A06B |
| Part Number | A06B-0374-B175 |
| Weight | 15.50 lbs (7.03 kg) |
| Product | AC Servo Motor |
| Rated Output Power | 0.5 kW |
| Voltage Rating | 66V |
| Frequency | 200 Hz |
| Speed | 3000 r/min |
| Input Rated Current | 4.5 A |
| Number of Phases | 3 |
| Insulation Class | F |
| Stall Torque | 2.5 Nm |
| Output Current Rating | 71 A |
| Shaft Type | Tapered |
| Brake | Yes |
| Use | CNC Machine |
| Brand | FANUC |
