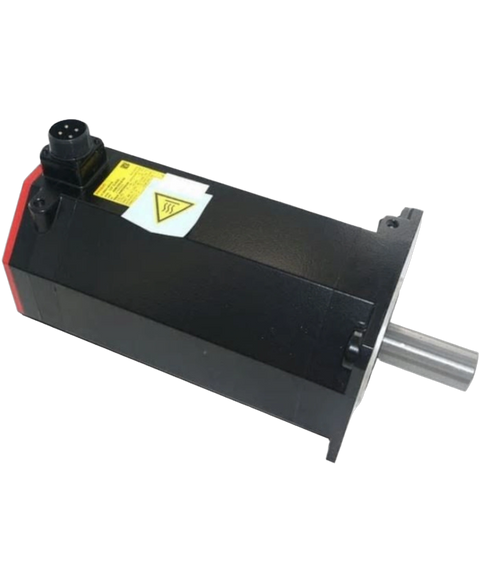

FANUC A06B-0253-B100
The FANUC A06B-0253-B100 servo motor delivers a significant output power of 7 kW, equating to 9.4 HP. It operates efficiently at a motor voltage rating of 149 VAC and provides optimal performance at 3000 rpm.
This FANUC A06B-0253-B100 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805663930.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | FANUC |
| Product Line | A06B |
| Part Number | A06B-0253-B100 |
| Weight | 94.00 lbs (42.64 kg) |
| Description of Module | AC Servo Motor |
| Output Power | 7 kW |
| Output Mechanical | 9.4 HP |
| Motor Voltage Rating | 149 VAC |
| Speed | 3000 rpm |
| Current Rating | 29 A |
| Motor Frequency | 200 Hz |
| Power Factor | 95% |
| Amplifier Input Voltage | 200 to 230 VAC |
| Input Line Frequency | 50/60 Hz |
| Insulation | Class F |
| Degree of Protection | IP65 |
| Phases | 3-phase, Y-connected |
| Stall Torque | 30 Nm |
| Stall Current | 39 A |
| Brand | FANUC |
