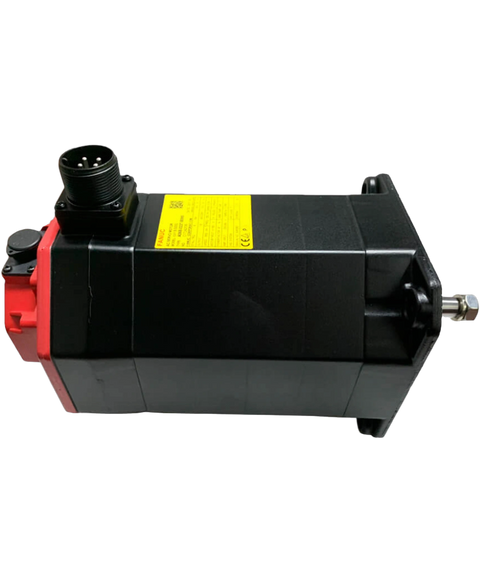

FANUC A06B-0227-B400
The FANUC A06B-0227-B400 is a compact servo motor capable of delivering a rated power of 1.6 kW. This motor efficiently operates within an input voltage range of 200-230V AC and reaches a rated speed of 3,000 RPM, with a maximum limit of 6,000 RPM, suitable for high-performance applications.
This FANUC A06B-0227-B400 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805458892.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | FANUC |
| Product Line | A06B |
| Part Number | A06B-0227-B400 |
| Weight | 35.06 lbs (15.90 kg) |
| Rated Power | 1.6 kW |
| Stall Torque | 8 Nm |
| Amp Input Voltage | 200-230V AC |
| Rated Speed | 3,000 RPM |
| Maximum Speed | 6,000 RPM |
| Voltage Rating | 182V AC |
| Current Rating | 5.4 A |
| Encoder Type | Absolute Pulse Coder |
| Shaft Type | Straight with keyway |
| Cooling Method | Fully enclosed, natural cooling |
| Protection Rating | IP65 |
| Mounting Type | Flange mount |
| Insulation Class | Class F |
| Ambient Temperature Range | 0°C to +40°C |
| Brand | FANUC |
