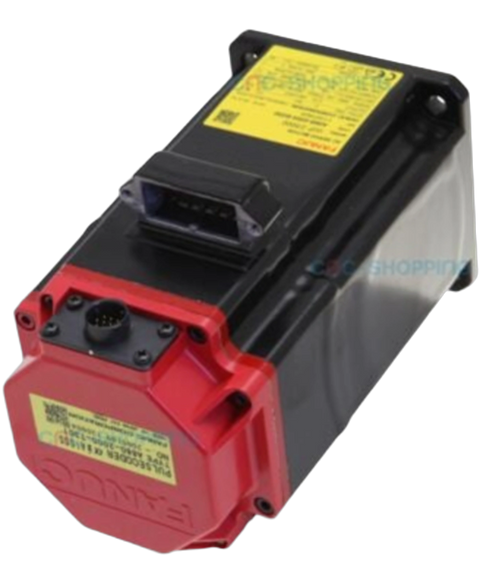

FANUC A06B-0205-B200
The FANUC A06B-0205-B200 is an AC servo motor designed for high-performance applications. This motor operates at a voltage of 149V and a frequency of 267 Hz, delivering a substantial stall torque of 2 Nm.
This FANUC A06B-0205-B200 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805542154.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | FANUC |
| Product Line | A06B |
| Part Number | A06B-0205-B200 |
| Weight | 10.00 lbs (4.54 kg) |
| Description | AC Servo Motor |
| Motor Voltage and Frequency | 149V, 267 Hz |
| Stall Torque | 2 Nm |
| Stall Current | 3.5A |
| Winding | Y-connected |
| Number of Phases | 3-phase |
| Degree of Protection | IP65 |
| Insulation | Class F |
| Power Factor | 97% |
| Input Voltage | 200 to 230 VAC |
| Input Frequency | 50/60 Hz |
| Nominal Current | 3.2A |
| Nominal Speed | 4000 RPM |
| Nominal Output Power (kW) | 0.75 kW |
| Nominal Output Power (HP) | 1 HP |
| Brand | FANUC |
