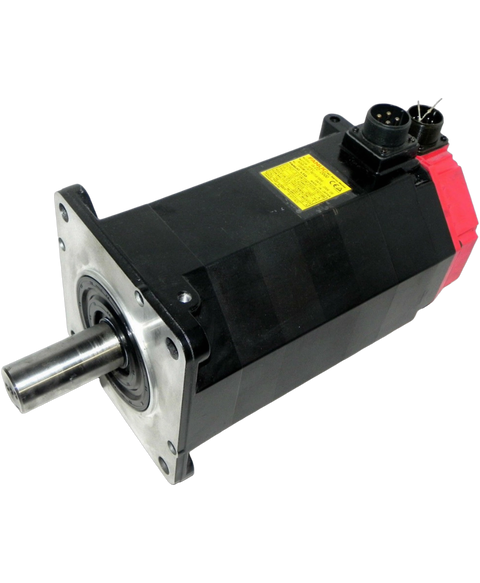

FANUC A06B-0147-B075
The A06B-0147-B075 model by FANUC is an AC servo motor engineered for optimal performance in various applications. This unit delivers a power output of 3.8 kW, equivalent to 5.1 HP, and operates at a voltage rating of 157 V AC.
This FANUC A06B-0147-B075 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805429117.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | FANUC |
| Product Line | A06B |
| Part Number | A06B-0147-B075 |
| Weight | 68.00 lbs (30.84 kg) |
| Name | AC Servo Motor |
| Output Power | 3.8 kW (5.1 HP) |
| Motor Voltage Rating | 157 VAC |
| Motor Frequency Rating | 133 Hz |
| Inverter Voltage Rating | 200 VAC |
| Nominal Rated Current | 15 A |
| Rated Speed | 2000 rpm |
| Insulation | Class F |
| Number of Phases | 3-phase |
| Winding | Y-connected |
| Excitation | Permanent Magnetic Field |
| Stall Torque | 22 Nm (194.72 lbf-in) |
| Stall Current | 19 A |
| Brand | FANUC |
