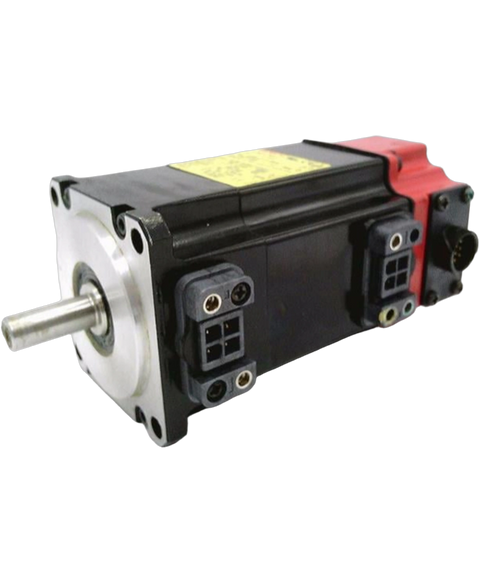

FANUC A06B-0115-B804
The FANUC A06B-0115-B804 is an AC servo motor suitable for high-performance applications. It provides a continuous rated output of 0.35 kW with a maximum rated speed of 6000 RPM.
This FANUC A06B-0115-B804 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805677917.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | FANUC |
| Product Type | AC Servo Motor |
| Product Line | A06B |
| Part Number | A06B-0115-B804 |
| Weight | 2.88 lbs (1.30 kg) |
| Rated Output Power | 0.35 kW (Continuous) |
| Stall Torque | 0.65 Nm |
| Rated Speed | 6000 RPM |
| Rated Current (Continuous) | 2.5 A |
| Peak Current | 2.9 A |
| Motor Input Voltage | 86 V |
| Winding Configuration | Y (Wye) Connection |
| Number of Poles | 8 |
| Number of Phases | 3 |
| Power Factor | 98% |
| Operating Frequency | 400 Hz |
| Ambient Temperature Range | 0°C to 40°C |
| Protection Rating | IP65 |
| Insulation Class | Class F (155°C maximum winding temperature) |
| Brand | FANUC |
