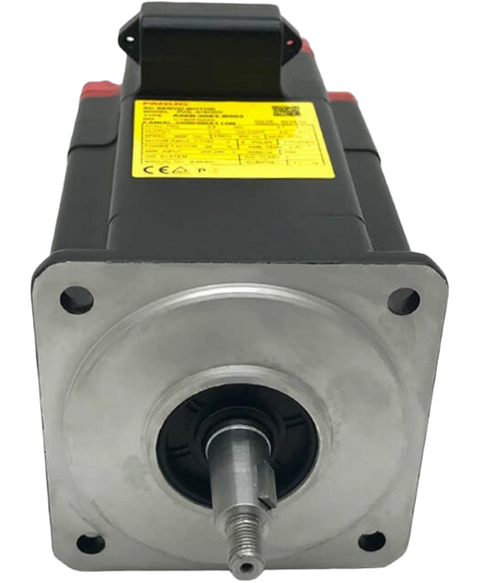

FANUC A06B-0063-B203
The FANUC A06B-0063-B203 is an AC servo motor engineered for precision applications. With a model designation of βiS4,4000, it operates at a continuous output power of 0.75 kW, delivering reliable performance at a rated speed of 3000 RPM.
This FANUC A06B-0063-B203 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805295455.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | FANUC |
| Product Type | AC Servo Motor |
| Product Line | A06B |
| Part Number | A06B-0063-B203 |
| Weight | 9.00 lbs (4.08 kg) |
| Model | βiS4/4000 |
| Continuous Output Power | 0.75 kW |
| Rated Voltage | 143 V |
| Rated Speed | 3000 RPM |
| Rated Current | 3.2 A |
| Frequency | 200 Hz |
| Power Factor | 99% |
| Input Voltage | 200-240 V AC, 50/60 Hz |
| Insulation Class | F |
| Protection Rating | IP67 |
| Winding Connection | Delta (Δ) |
| Holding Torque | 3.5 Nm |
| Peak Current | 4.7 A |
| Brand | FANUC |
