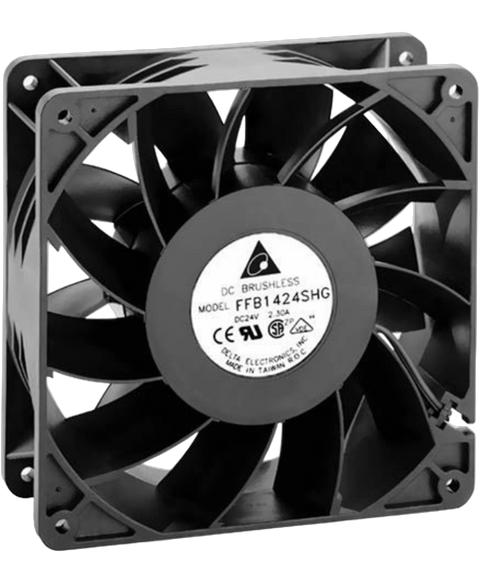

Delta FFB1424SHG
140×140×50.8mm 24V DC Fan with Speed Sensor (TACH)
This Delta FFB1424SHG is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Cooling > Fans > Axial range and is referenced internally as PartLogic SKU PL26805543932.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Airflow | 252.11 CFM |
| Approvals | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Case/Package | Axial |
| Current Rating | 1.53 A |
| Height | 139.7 mm |
| Housing Material | Plastic |
| Length | 139.7 mm |
| Max Operating Temperature | 122 °C |
| Max Power Dissipation | 36 W |
| Min Operating Temperature | 14 °C |
| Power Rating | 36.72 W |
| RoHS | Compliant |
| RPM | 3600 RPM |
| Termination | 3 Wire Leads, Wire Leads |
| Weight | 680.388555 g |
| Width | 50.8 mm |
