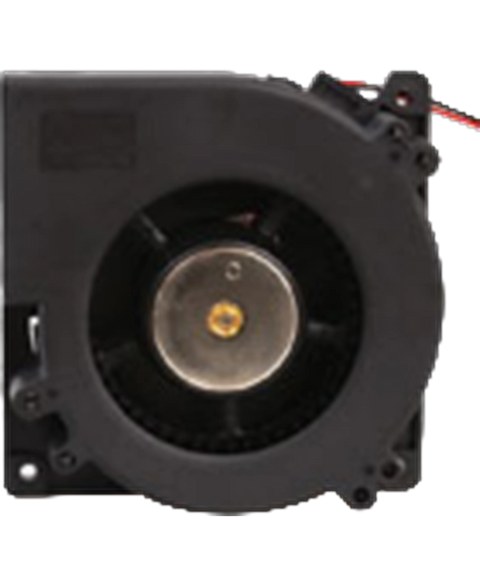

Delta BFB1248HH
120x120x32mm DC blower fan, dual ball bearing, 28–56V input, 10.56W, 2800RPM, industrial cooling, compact design, flange mount.
This Delta BFB1248HH is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Cooling > Fans > Axial range and is referenced internally as PartLogic SKU PL27194739718.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Airflow | 35.3 CFM |
| Approvals | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Current Rating | 220 mA |
| Depth | 120 mm |
| Flammability Rating | UL94 V-0 |
| Housing Material | Plastic |
| Lead Free | Lead Free |
| Length | 120 mm |
| Max Power Dissipation | 10.6 W |
| Mount | Flanges |
| Power Rating | 10.56 W |
| RoHS | Compliant |
| RPM | 2800 RPM |
| Termination | 2 Wire Leads |
| Voltage Rating | 48 V |
| Voltage Rating (DC) | 48 V |
| Weight | 229.971332 g |
| Width | 32 mm |
