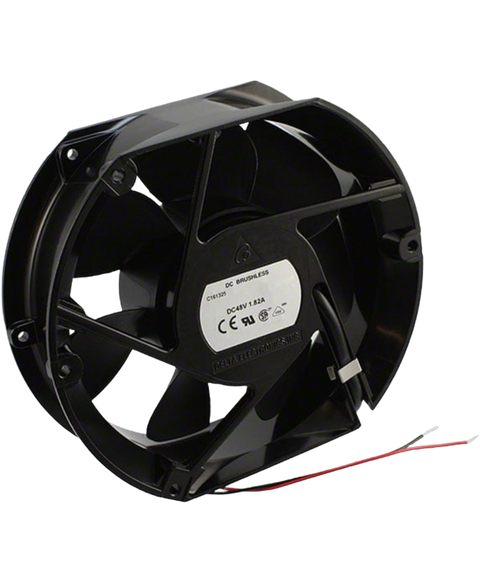

Delta AHB1548GHG
172x150x50.8mm DC fan, 48VDC.
This Delta AHB1548GHG is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Cooling > Fans > Axial range and is referenced internally as PartLogic SKU PL26887689745.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Airflow | 402.7 CFM |
| Approvals | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Case/Package | Axial |
| Current Rating | 1.52 A |
| Depth | 150 mm |
| Lead Free | Lead Free |
| Length | 172 mm |
| Life (Hours) | 100000 hours |
| Max Operating Temperature | 176 °C |
| Max Power Dissipation | 73 W |
| Min Operating Temperature | -40 °C |
| Power Rating | 72.96 W |
| RoHS | Compliant |
| RPM | 5200 RPM |
| Termination | 2 Wire Leads |
| Voltage Rating | 48 V |
| Weight | 816.466266 g |
| Width | 50.8 mm |
