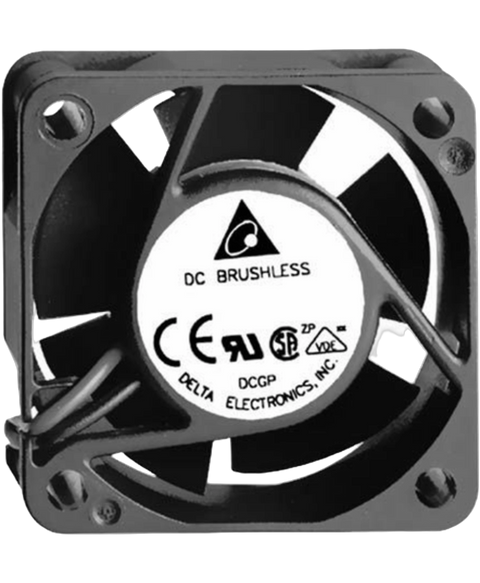

Delta AFB0412VHA-A
Delta AFB Series DC Axial Fan, 40x40x10mm, 12V, 9.5 CFM, 35.5 dBA, Ball Bearing
This Delta AFB0412VHA-A is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Cooling > Fans > Axial range and is referenced internally as PartLogic SKU PL26805607856.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Airflow | 9.3 CFM |
| Approvals | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Case/Package | Axial |
| Current Rating | 60 mA |
| Depth | 40 mm |
| Housing Material | Plastic |
| Length | 40 mm |
| Max Operating Temperature | 158 °C |
| Max Power Dissipation | 720 mW |
| Min Operating Temperature | 14 °C |
| Power Rating | 720 mW |
| RoHS | Compliant |
| RPM | 8000 RPM |
| Termination | 3 Wire Leads |
| Voltage Rating | 12 V |
| Weight | 14.061363 g |
| Width | 10 mm |
