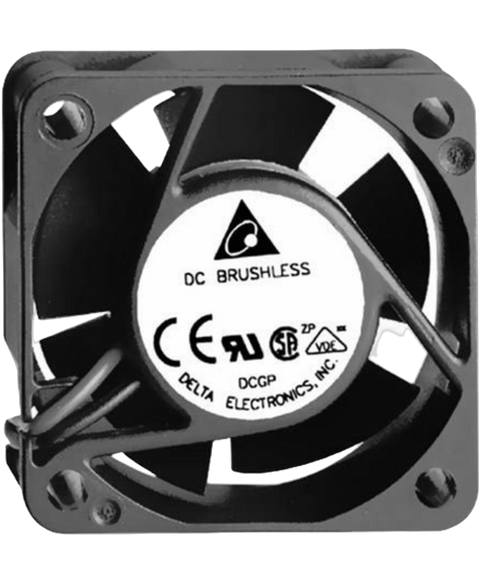

Delta AFB0312HA
Fan, 12VDC, 0.15A, 2 wire cooling fan, 30 x 30 x 10mm
This Delta AFB0312HA is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Cooling > Fans > Axial range and is referenced internally as PartLogic SKU PL26801464379.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Airflow | 3.5 CFM |
| Approvals | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Case/Package | Axial |
| Current Rating | 90 mA |
| Depth | 30 mm |
| Height | 30 mm |
| Housing Material | Plastic |
| Length | 30 mm |
| Life (Hours) | 30000 hours |
| Max Operating Temperature | 158 °C |
| Max Power Dissipation | 1.08 W |
| Min Operating Temperature | 14 °C |
| Mount | Flanges |
| Power Rating | 1.08 W |
| RoHS | Compliant |
| RPM | 9000 RPM |
| Termination | 2 Wire Leads |
| Voltage Rating | 12 V |
| Weight | 10.432625 g |
| Width | 10 mm |
