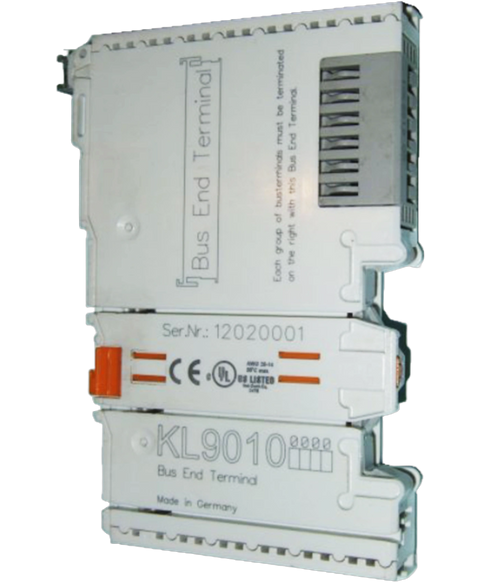

Beckhoff KL9010
Bus end terminal, for bus communication, 24VDC, -25 to +60 degree c, right hand
This Beckhoff KL9010 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL26805759632.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | KL9010 |
| Type | Bus end terminal |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm |
| Housing width | 12 mm |
| Material | Polycarbonate |
| Mounting | 35 mm DIN rail (EN 60715) with lock |
| Power contacts current | Imax 10 A |
| Bit width in process image | 0 |
| Operating temperature | -25…+60 °C |
| Storage temperature | -40…+85 °C |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| K‑bus | Looped through |
| Side-by-side mounting (with power contact) | Yes |
| Side-by-side mounting (without power contact) | Yes |
| Weight | approx. 50 g |
