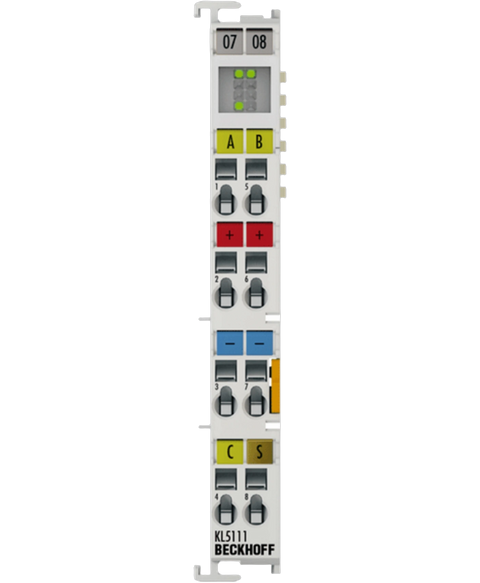

Beckhoff KL5111
BUS TERMINAL, 1-CHANNEL, ENCODER INTERFACE, 1 INCREMENTAL ENCODER, 24 VDC HTL, 250 KHZ, 16 BIT BINARY COUNTER, 0 TO +55 DEGREE C, IP20
This Beckhoff KL5111 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL26805667639.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | KL5111 |
| Form factor | Bus Terminal |
| Encoder interface | Incremental, 24 V DC HTL |
| Channels | 1 |
| Connections | A, B, C, 24 V |
| Counter | 16 bit, binary |
| Quadrature decoder | 4‑fold evaluation |
| Limit frequency | 1 million increments/s |
| Process image | 2 × 16‑bit data, 2 × 8‑bit control/status |
| Power supply | 24 V DC (−15%/+20%) |
| K‑bus current | typ. 40 mA |
| Dimensions | 12 mm × 100 mm × 68 mm |
| Weight | approx. 60 g |
| Operating temperature | 0…55°C |
| Storage temperature | −25…+85°C |
| Relative humidity | 95%, no condensation |
| Protection rating | IP20 |
| Installation | 35 mm DIN rail, EN 60715 |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| ATEX/IECEx marking | II 3 G Ex ec IIC T4 Gc / Ex ec IIC T4 Gc |
| EMC | EN 61000‑6‑2 / EN 61000‑6‑4 |
| Vibration/shock | EN 60068‑2‑6 / EN 60068‑2‑27 |
