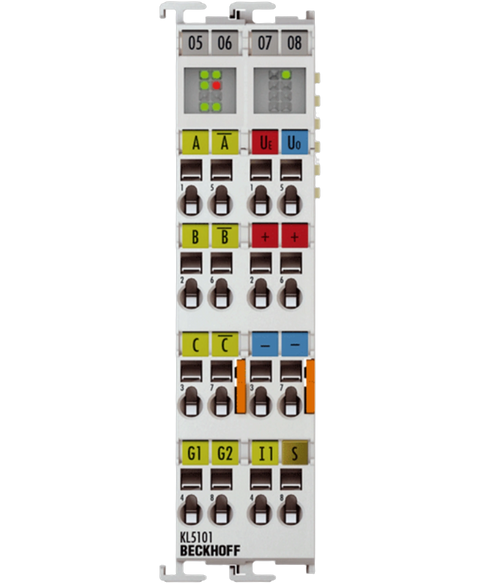

Beckhoff KL5101
BUS TERMINAL, 1-CHANNEL ENCODER INTERFACE, INCREMENTAL, 5 V DC (DIFF RS422, TTL), 1 MHZ, 0.5 AMP, 16 BIT, IP20
This Beckhoff KL5101 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL26801460682.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | KL5101 |
| Interface | Incremental encoder, RS422 differential or TTL single-ended |
| Channels | 1 incremental encoder + 1 input |
| Encoder supply | 5 V DC, up to 0.5 A |
| Counter | 16 bit, binary |
| Quadrature decoder | 1-, 2-, 4-fold evaluation |
| Limit frequency | 4 million increments/s (with 4-fold evaluation) |
| Inputs | Status input 5 V DC; gate/latch input 24 V DC |
| Process image | 1 × 16 bit data, 1 × 8 bit control/status |
| Period measurement | 200 ns resolution |
| Power supply | 24 V DC (-15%/+20%) |
| Current consumption (K-bus) | typ. 60 mA |
| Power contacts | None |
| Dimensions | 24 mm x 100 mm x 68 mm |
| Weight | approx. 85 g |
| Material | Polycarbonate |
| Mounting | 35 mm DIN rail, EN 60715, lock |
| Wiring | Spring actuation by screwdriver; strip length 8–9 mm |
| Conductor ranges | Solid AWG28–14; stranded AWG28–14; ferrule AWG26–16 |
| Protection rating | IP20 |
| Operating temperature | -25 to +60 °C |
| Storage temperature | -40 to +85 °C |
| Relative humidity | 95%, non-condensing |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Approvals | CE, CCC, UL, ATEX, IECEx |
| ATEX/IECEx marking | II 3 G Ex ec IIC T4 Gc / Ex ec IIC T4 Gc |
