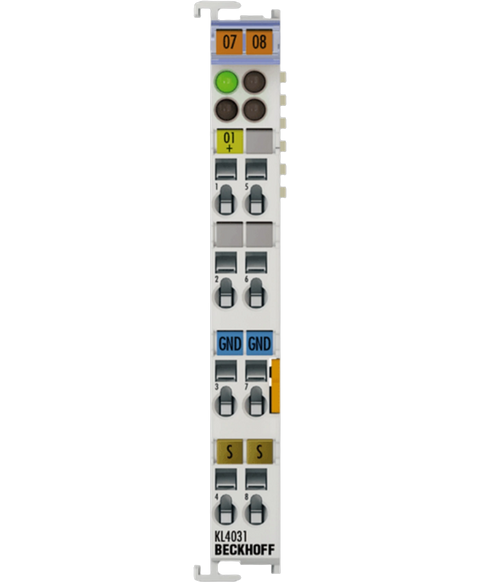

Beckhoff KL4031
Bus terminal, 1-channel analog output, -1 to+10 v signal voltage, 500 v, 75mA, differential, DIN rail mount, -25 to +85 degrees c, IP20
This Beckhoff KL4031 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL26805640401.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | KL4031 |
| Output channels | 1 analog voltage |
| Signal voltage range | −10…+10 V |
| Resolution | 12 bit |
| Conversion time | ~ 1.5 ms |
| Electrical isolation | 500 V (K-bus/signal voltage) |
| Load | > 5 kΩ (short-circuit proof) |
| K-bus current consumption | typ. 75 mA |
| Power supply | via the K-bus |
| Dimensions | 12 mm x 100 mm x 68 mm |
| Weight | approx. 85 g |
| Operating temperature | 0…55°C |
| Storage temperature | −25…+85°C |
| Relative humidity | 95%, no condensation |
| Protection rating | IP20 |
| Mounting | 35 mm DIN rail, EN 60715 |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV |
