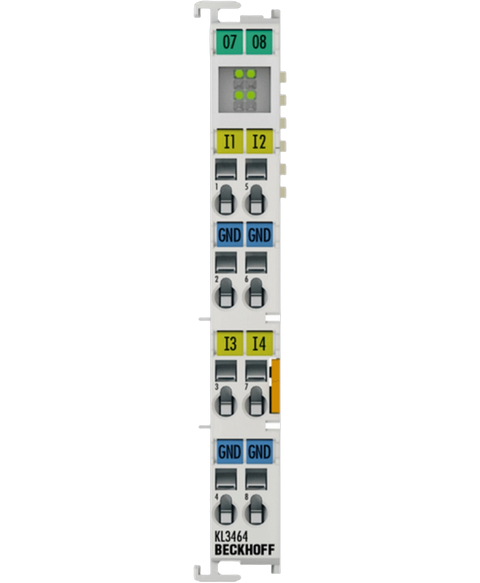

Beckhoff KL3464
Analog input terminal, 2-wire, single-ended, 4-channel, 0 to 10 v, 12 bit resolution, -25 to +60 degree c, IP20
This Beckhoff KL3464 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL26805654799.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | KL3464 |
| Input channels | 4 analog voltage, single‑ended |
| Signal voltage range | 0–10 V |
| Resolution | 12 bit |
| Conversion time | ~ 2 ms |
| Internal resistance | > 130 kΩ |
| Electrical isolation | 500 V (K‑bus/signal voltage) |
| Data interface | K‑bus, no address/configuration setting |
| K‑bus current consumption | typ. 100 mA |
| Power supply | via the K‑bus |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | approx. 75 g |
| Operating temperature | −25…+60 °C |
| Storage temperature | −40…+85 °C |
| Relative humidity | 95%, no condensation |
| Protection rating | IP20 |
| Vibration/Shock | EN 60068‑2‑6 / EN 60068‑2‑27 |
| EMC | EN 61000‑6‑2 / EN 61000‑6‑4 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV |
| Ex marking | ATEX II 3 G Ex ec IIC T4 Gc; IECEx Ex ec IIC T4 Gc |
| Wiring actuation | Spring actuation by screwdriver |
| Mounting | 35 mm DIN rail (EN 60715) with lock |
| Conductor ranges | s: AWG28–14; st: AWG28–14; f: AWG26–16 |
| Power contacts current load | 10 A |
