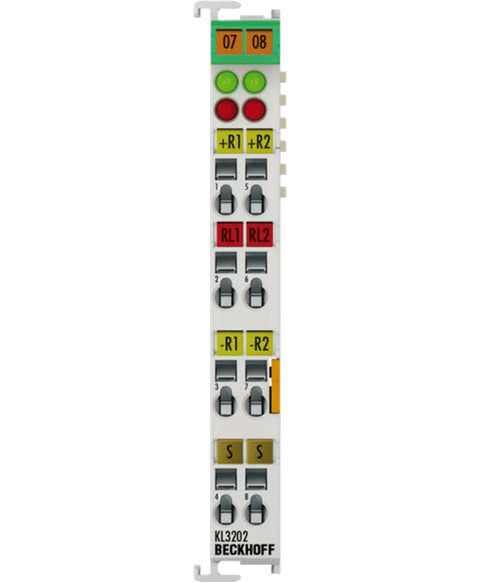

Beckhoff KL3202
Bus terminal, 2-channel analog input, pt100 (rtd) for resistance sensors, 16 bit, 3-wire system, IP20
This Beckhoff KL3202 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL26805297339.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | KL3202 |
| Type | Analog input bus terminal for RTD/resistance |
| Number of inputs | 2 |
| Resolution | 0.1°C per digit |
| Conversion time | ~250 ms |
| Measuring current | typ. 0.5 mA |
| Measuring range | −200…+850°C (Pt), −60…+250°C (Ni) |
| Supported sensors | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement |
| Connection technology | 2-/3-wire (default 3-wire) |
| Process image | 2 × 16-bit data, optional 2 × 8-bit control/status |
| Electrical isolation | 500 V (K-bus/signal voltage) |
| K-bus current consumption | typ. 60 mA |
| Power contacts current load | 10 A (no power contacts for module) |
| Power supply | via the K-bus |
| Operating temperature | −25…+60°C |
| Storage temperature | −40…+85°C |
| Relative humidity | 95%, no condensation |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| Protection rating | IP20 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV |
| Dimensions | 12 mm × 100 mm × 68 mm |
| Weight | approx. 70 g |
| Material | Polycarbonate |
| Installation | 35 mm DIN rail, EN 60715 |
| Special features | Open-circuit recognition |
