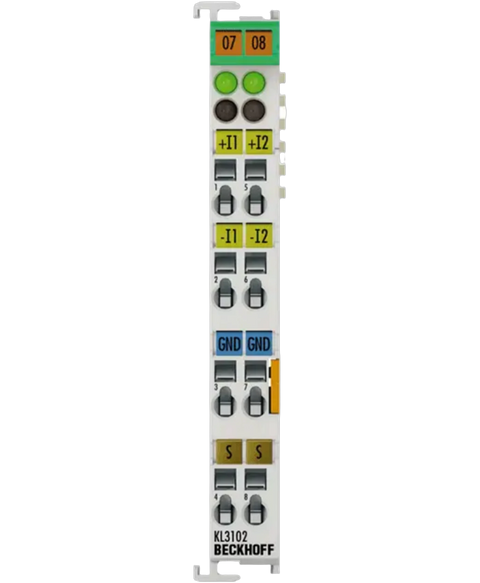

Beckhoff KL3102
Bus terminal, 2-channel, analog input, -10 to +10 v signal voltage, 65mA, differential input, 16 bit resolution, 140 ms conversion time, 0 to +55 degree c, IP20
This Beckhoff KL3102 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL27204950731.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | KL3102 |
| Input channels | 2 differential voltage inputs |
| Signal voltage range | −10…+10 V |
| Resolution | 16 bit (15 bit for 0…10 V) |
| Conversion time | 140 ms configurable to 2 ms |
| Filter | 50 Hz configurable |
| Internal resistance | > 200 kΩ |
| Common mode voltage | max. 35 V |
| Electrical isolation | 500 V (K‑bus/signal voltage) |
| Power supply | via the K‑bus |
| Current consumption K‑bus | typ. 65 mA |
| Power contacts | No power contacts |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | approx. 70 g |
| Operating temperature | 0…55°C |
| Storage temperature | −25…+85°C |
| Relative humidity | 95%, no condensation |
| Protection rating | IP20 |
| Mounting | 35 mm DIN rail, EN 60715, with lock |
| Standards (vibration/shock) | EN 60068-2-6 / EN 60068-2-27 |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Ex marking | ATEX II 3 G Ex ec IIC T4 Gc; IECEx Ex ec IIC T4 Gc |
| Indicators | 2 LEDs for bus/data exchange |
