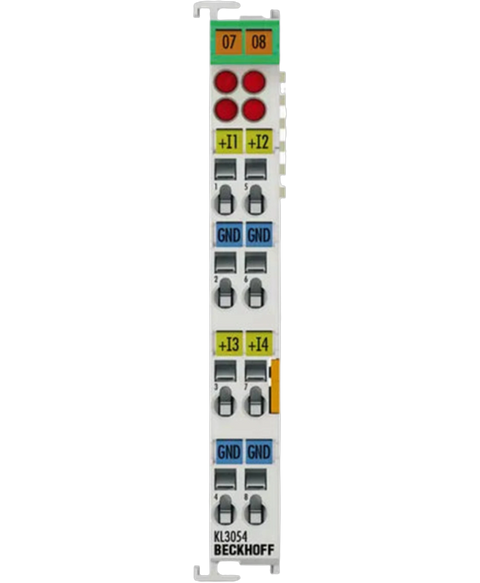

Beckhoff KL3054
Analog input terminal, 4-channel, 4-20mA signal current, single-ended technology, 12 bit resolution, internal resistance: 80 ohm + 1.7 v, conversion time: 4 ms, surge voltage resistance: 35 v max, -25 to +60 degree c, IP20
This Beckhoff KL3054 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL27209356251.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | KL3054 |
| Input channels | 4 |
| Input signal | 4–20 mA, single‑ended |
| Resolution | 12 bit |
| Conversion time | ~4 ms |
| Internal resistance | 80 Ω + 0.7 V diode voltage |
| Process image | 4 × 16‑bit data (optional 4 × 8‑bit control/status) |
| Electrical isolation | 500 V (K‑bus/signal voltage) |
| Surge voltage resistance | Max. 35 V |
| Measurement error | < ±0.3% of full scale |
| K‑bus current consumption | typ. 75 mA |
| Power contacts | None (no power contacts) |
| Power contacts current load | 10 A (imax) |
| Dimensions | 12 mm × 100 mm × 68 mm |
| Weight | approx. 70 g |
| Protection rating | IP20 |
| Operating temperature | −25…+60 °C |
| Storage temperature | −40…+85 °C |
| Relative humidity | 95%, no condensation |
| Vibration/Shock | EN 60068‑2‑6 / EN 60068‑2‑27 |
| EMC | EN 61000‑6‑2 / EN 61000‑6‑4 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| Mounting | 35 mm DIN rail per EN 60715 with lock |
| Side‑by‑side mounting | Double slot and key connection |
| Material | Polycarbonate |
| Plug‑in wiring level | For all KSxxxx Bus Terminals |
