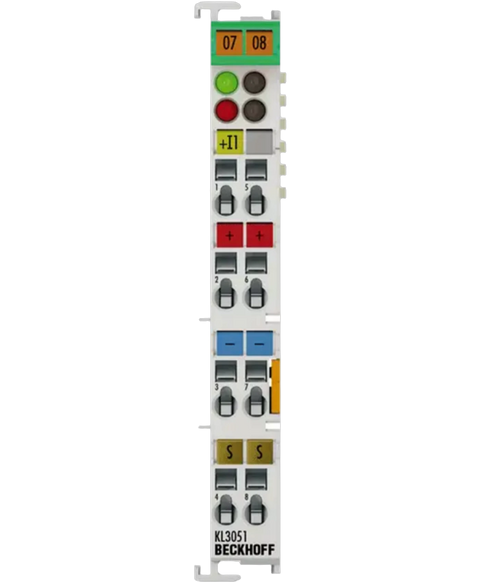

Beckhoff KL3051
Input terminal, loop-powered, 24VDC, 4-20mA, 1 input, 12 bit resolution, 1 ms conversion time, - 25 to +85 degrees c operating temperature
This Beckhoff KL3051 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL26805610600.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | KL3051 |
| Input signal | 4–20 mA, single‑ended |
| Resolution | 12 bit |
| Conversion time | ~1 ms |
| Number of inputs | 1 |
| Internal resistance | 80 Ω + 0.7 V diode |
| Electrical isolation | 500 V (K‑bus/signal) |
| Surge voltage resistance | max. 35 V |
| Power supply | 24 V DC via power contacts |
| Current consumption (K‑bus) | typ. 65 mA |
| Power contacts current load | 10 A |
| Dimensions | 12 mm x 100 mm x 68 mm |
| Weight | approx. 70 g |
| Operating temperature | 0–55°C |
| Storage temperature | −25 to +85°C |
| Relative humidity | 95%, no condensation |
| Protection rating | IP20 |
| Mounting | 35 mm DIN rail (EN 60715) with lock |
| Wiring | Spring actuation by screwdriver; AWG28–14 (solid/stranded), AWG26–16 (ferrule) |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV |
| ATEX/IECEx marking | ATEX II 3 G Ex ec IIC T4 Gc; IECEx Ex ec IIC T4 Gc |
